2 Lines 3 Colors 16 Characters In-Vehicle LED Display Wide Range Power Input

Name: 2 Lines 3 Colors 16 Characters InVehicle LED Display Wide Range Power Input
Brand: darveen
Price: 1 USD

Quality 2 Lines 3 Colors 16 Characters In-Vehicle LED Display Wide Range Power Input wholesale

Brand Name : darveen

Model Number : VLD-2316

Place of Origin : Shenzhen, China

MOQ : 1 set

Payment Terms : T/T

Supply Ability : 3K-5K

Delivery Time : 2-5 weeks

Product name : VLD-2316 In-Vehicle LED Display

Pixel Pitch : 5mm

Module Size : 64 x 16

Module Resolution : 8 x 8

Display Color : Red/Orange/Green

Brightness : 8000 nits

Communication : RS-232

Power Input : 8~36V DC, M12-3P (Male)

Operating Temp. : -20℃~ 60℃

Contact Now

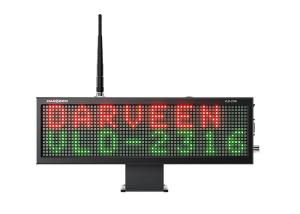

VLD-2316 In-Vehicle LED Display, 2-Lines, 3-Colors, 16-Characters, Wide-range Power Input

VLD-2316 is an industrial LED display for fleet management. It supports vehicle grade wide power input. The outdoor high-brightness LED lamp bead can display 2 lines / 3 colors / 16 characters. The standard RS-232 serial protocol command input interface is reserved, which is compatible with some brand vehicle computers.

● Outdoor High-brightness LED Lamp Beads
● 2-Lines, 3-Colors, 16-Characters Display System
● Standard RS-232 Communication
● Rugged Aluminum Enclosure, IP54 Dust/water Protection
● Wide Range 8-36V DC Power Input

Display	Module	Outdoor, P5
	Pixel Pitch	5mm
	Module Size	64 x 16
	Module Resolution	8 x 8
	Display Color	Red/Orange/Green
	Brightness	8000 nits
Communication		RS-232, DB9 (Male)
Power Management	Power Input	8~36V DC, M12-3P (Male)
Power Management	Consumption	8W typ.
Environmental	Operating Temperature	-20~60℃
	IP Proof	IP54
	Certifications	CE, FCC
Mechanical	Housing	Aluminum
	Color	Black
	Dimension (W x L x H)	350 x 108 x 40.2 mm
	Weight	1.1 Kg
